The Olympus PCF-H190DL combines HDTV, NBI, RIT and 3D ScopeGuide technologies with a 170° field of view, Water Jet and variable stiffness, supporting detailed colon examination and controlled insertion.

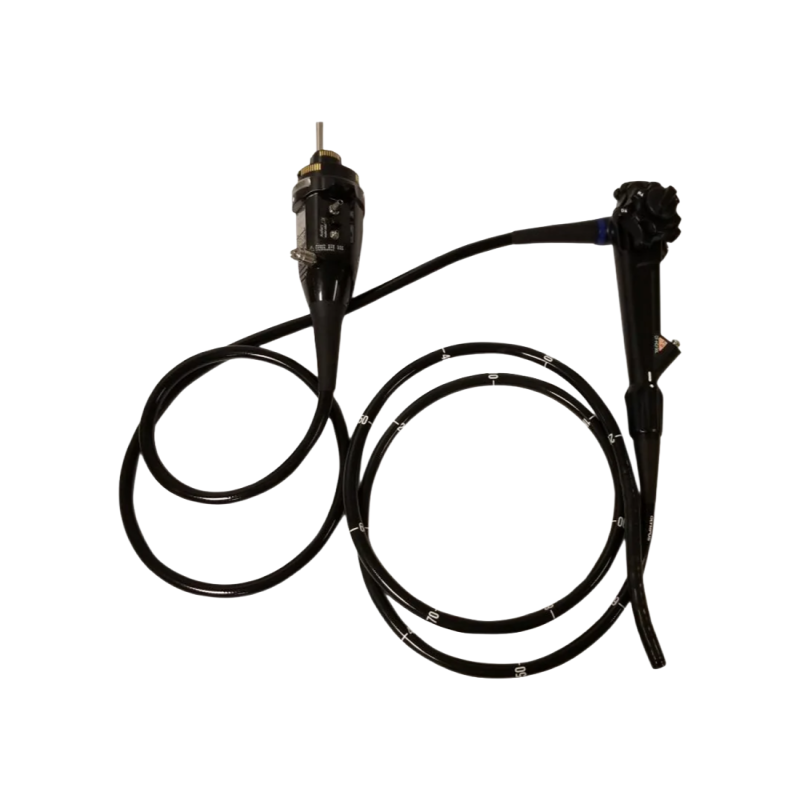

The Olympus PCF-H190DL is a slim-diameter video colonoscope from the EVIS EXERA III series. It combines HDTV imaging, Narrow Band Imaging™ (NBI), Responsive Insertion Technology (RIT), 3D ScopeGuide technology, and an integrated Water Jet system.
The combination of HDTV imaging and Narrow Band Imaging™ (NBI) enhances the evaluation of vascular structures and surface patterns during colon examination. Its wide 170° field of view provides an extended view of the examination area and supports detailed observation of the mucosa and visible abnormalities.
The PCF-H190DL incorporates Responsive Insertion Technology (RIT), combining High Force Transmission (HFT), Passive Bending (PB), and Variable Stiffness technology. This design supports controlled movement and adaptation to anatomical curves during insertion.
The ScopeGuide function provides a real-time three-dimensional representation of the endoscope's position and configuration during insertion. This allows the operator to identify loop formation and adjust the progression accordingly.
The integrated Water Jet system helps clear the surfaces being examined during routine procedures, supporting continuous visualization of the examination area.
The fully submersible One-Touch waterproof connector simplifies handling between procedures and reduces preparation steps.
The Olympus PCF-H190DL is a slim-diameter video colonoscope from the EVIS EXERA III series. It combines HDTV imaging, Narrow Band Imaging™ (NBI), Responsive Insertion Technology (RIT), 3D ScopeGuide technology, and an integrated Water Jet system.
The combination of HDTV imaging and Narrow Band Imaging™ (NBI) enhances the evaluation of vascular structures and surface patterns during colon examination. Its wide 170° field of view provides an extended view of the examination area and supports detailed observation of the mucosa and visible abnormalities.
The PCF-H190DL incorporates Responsive Insertion Technology (RIT), combining High Force Transmission (HFT), Passive Bending (PB), and Variable Stiffness technology. This design supports controlled movement and adaptation to anatomical curves during insertion.
The ScopeGuide function provides a real-time three-dimensional representation of the endoscope's position and configuration during insertion. This allows the operator to identify loop formation and adjust the progression accordingly.
The integrated Water Jet system helps clear the surfaces being examined during routine procedures, supporting continuous visualization of the examination area.
The fully submersible One-Touch waterproof connector simplifies handling between procedures and reduces preparation steps.
