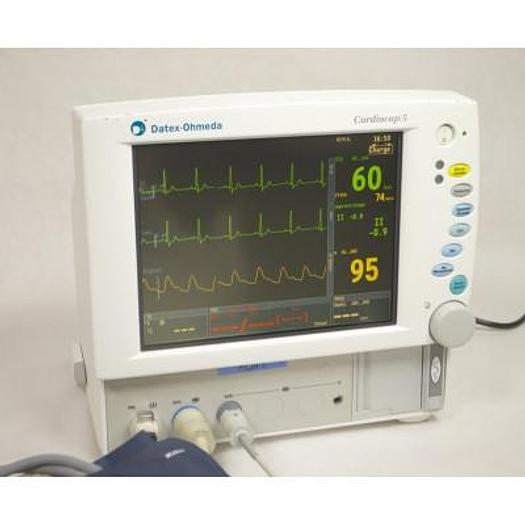

Datex-Ohmeda MONITEUR DE SOURVEILLANCE CARDIOCAP/5 DATEX-OHMEDA

1.6.2 NIBP Measurement range: adult 25 to 260 mmHg (3.3 to 34.7 kPa) child 25 to 195 mmHg (3.3 to 26.0 kPa) infant 15 to 145 mmHg (2.0 to 19.3 kPa) 1.6.3 Temperature Measurement accuracy: 25 to 45.0 °C ± 0.1 °C (77 to 113 °F ± 0.2 °F) 10to24.9°C±0.2°C(50to76.8°F±0.4°F) 1.6.4 ECG Waveform display (with 50 Hz power supply frequency): Monitoring filter: 0.5 to 30 Hz Waveform display (with 60 Hz power supply frequency): Monitoring filter: 0.5 to 40 H Heart rate Measurement range: 30 to 250 bpm Measurement accuracy: ± 5% or ± 5 Pacemaker pulse detection level: 2 to 500 mV Pacemaker pulse duration: 0.5 to 2 ms Overview Cardiocap/5 Technical Reference Manual 1.6.5 Impedancerespiration Respiration range: 4 to 120 respirations/minute Accuracy: ± 5% or ± 5 bpm 1.6.6 Pulseoximetry,standard SpO2 Calibration range: 50 to 100% Calibrated against functional saturation Measurement range: 40 to 100% 50 to 80% ± 3 digits; Below 50% unspecified NOTE: SpO2 measurement accuracy is based on deep hypoxia studies using Datex-Ohmeda FingerSat sensors on volunteered subjects. Arterial blood samples were analyzed by a Radiometer OSM CO-oximeter. Refer to the sensor instructions for specific SpO2 accuracy data. Pulse rate Measurement range: 30 to 250 bpm Measurement accuracy: ± 5% or ± 5 bpm Default alarm limits SpO2: high Off, low 90% Pulse rate: high 160, low 40 NOTE: Limits are adjustable. Sensor emitter wavelength ranges Red LED: 660 nm Infrared LED: 900 nm Pulse rate range accepted: 30 to 250 bpm | Typical measuring time: adults 23 seconds, infants 20 seconds | Measurement range: 10 to 45°C (50 to 113°F) | Probe type: Compatible with Datex-Ohmeda temperature probes only | St filter: 0.05 to 40 Hz | Diagnostic filter: 0.05 to 100 Hz | Display update time: 5 seconds | Averaging time: adjustable | Plethysmographic waveform scaling: adjustable | Measurement accuracy (% spo2 ±1 sd): 80 to 100% ± 2 digits;
