GE HealthCare Sonde d'échocardiographie transœsophagienne 6TC-RS TEE

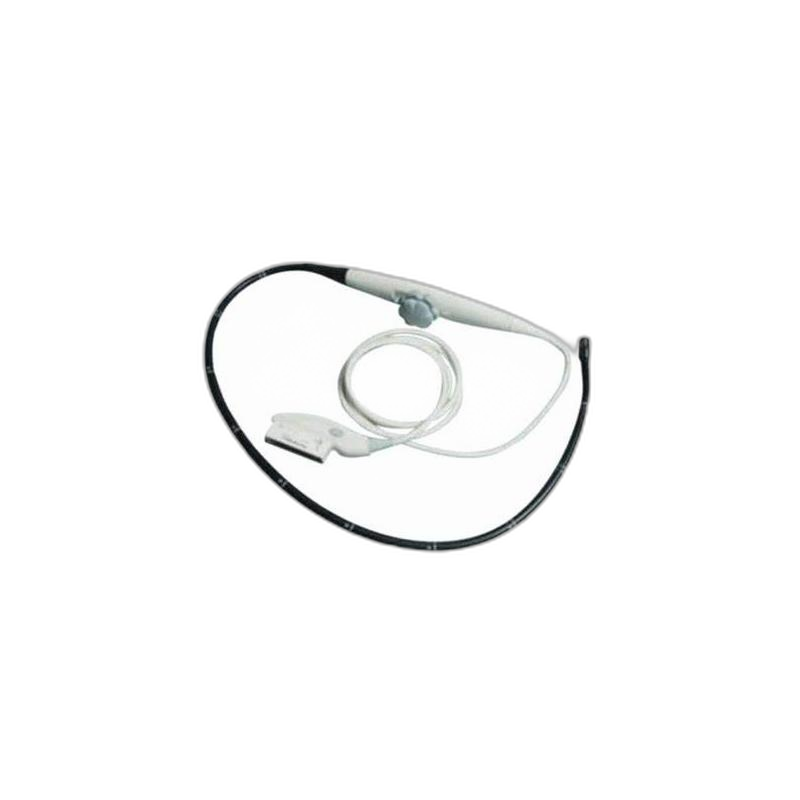

GE HealthCare 6TC-RS – Transesophageal Echocardiography (TEE) Probe

Functional tested. The cable shows yellowing due to age; however, its appearance may improve and become less yellow after gentle cleaning. The GE HealthCare 6TC-RS TEE probe is a multiplane phased-array transducer designed specifically for adult cardiac applications. It provides detailed cardiac imaging for cardiovascular examinations and diagnostic assessment.

Key Features

• Model: 6TC-RS
• Type: Transesophageal echocardiography (TEE) probe
• Technology: Multiplane phased-array
• Frequency range: 2.9–8.0 MHz
• Field of view: 90°
• Depth of field: Up to 20 cm
• Footprint: 12 × 14 mm
• Probe length: 45 mm
• Applications: Adult cardiac imaging

Compact and Ergonomic Design

The 6TC-RS TEE probe features a compact 12 × 14 mm footprint and a 45 mm probe length. Its ergonomic design supports easy insertion and maneuverability during transesophageal examinations while allowing clinicians to obtain detailed cardiac images.

Wide Frequency Range

With a frequency range of 2.9–8.0 MHz, the 6TC-RS provides flexibility for imaging both superficial and deeper cardiac structures. This broad range supports detailed visualization of cardiac anatomy, including the chambers and valves.

Imaging Modes

• 2D Imaging: Provides real-time visualization of cardiac anatomy and supports detailed assessment of cardiac structures and function.
• Harmonic Imaging: Helps improve image contrast and reduce noise for clearer visualization.
• Color Doppler: Provides visualization of blood flow within the heart and supports assessment of flow abnormalities such as regurgitation and stenosis.
• M-Mode: Enables measurements of cardiac structures, including wall thickness and chamber dimensions.
• PW Doppler: Supports assessment of blood-flow velocities, particularly across cardiac valves.
• CW Doppler: Enables evaluation of high-velocity blood flow, including flow across stenotic valves.

Multiplane Imaging

The multiplane phased-array design provides flexibility during TEE examinations. Clinicians can electronically adjust the imaging plane to visualize cardiac structures from different angles without manually repositioning the probe, supporting efficient and comprehensive cardiac assessment.

Field of View and Imaging Depth

The 90° field of view provides broad visualization of the heart and surrounding structures. With a depth of field of up to 20 cm, the probe supports imaging of both superficial and deeper cardiac anatomy.

Clinical Applications

The GE HealthCare 6TC-RS is designed for adult cardiac TEE examinations, from routine assessments to more complex cardiovascular evaluations. Its combination of multiplane imaging, multiple Doppler modes and a broad frequency range supports detailed assessment of cardiac anatomy, function and blood flow.
