Olympus

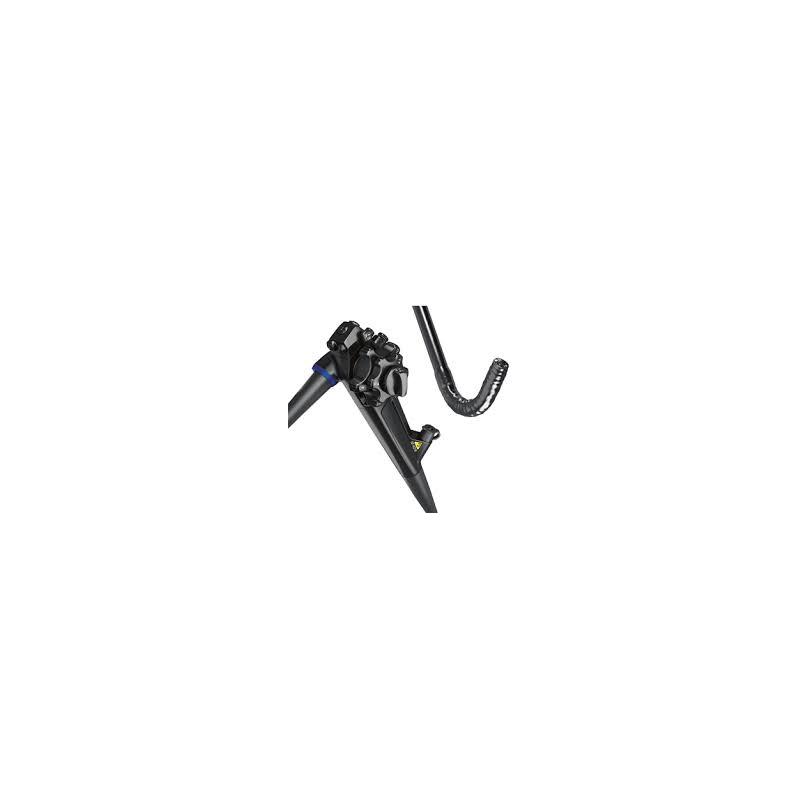

Vidéoscope gastro-intestinal GIF-HQ290

Olympus GIF-HQ290 is a high-definition gastrointestinal videoscope featuring Dual Focus, NBI, integrated water jet and a 2.8 mm instrument channel for precise upper GI observation and treatment.

Olympus GIF-HQ290 – High-Definition Gastrointestinal Endoscope

The Olympus GIF-HQ290, part of the EVIS LUCERA ELITE system, delivers high-definition imaging and advanced optical and mechanical performance designed to meet the demanding requirements of diagnostic and interventional gastrointestinal endoscopy.

Advanced Imaging and Technologies

High-Definition (HD) imaging for detailed visualization of the mucosa.
Dual Focus technology for quick switching between standard and close-up observation.
NBI (Narrow Band Imaging) for enhanced visualization of vascular and mucosal structures.
High-resolution optical system to support the detection of subtle lesions.
Compatible with the CV-290 video processor and CLV-290/CLV-290SL light sources.

Practical Features

Integrated water jet for clearing the mucosa during examinations.
Air/water nozzle for convenient lens cleaning during procedures.
Watertight quick-connect connector for simplified handling and maintenance.
Fully immersible connector without requiring an additional watertight cap.

Ergonomics and Performance

9.9 mm outer diameter for easier insertion.
Up to 210° upward angulation for precise navigation through the digestive tract.
2.8 mm working channel compatible with a wide range of endotherapeutic accessories.
Designed to combine high-definition imaging, flexibility, safety, and ease of use.

Applications

The GIF-HQ290 is designed for examination of the upper gastrointestinal tract and is suitable for screening, diagnostic procedures, and interventional endoscopy.

Quick delivery worldwide

All our equipment is rigorously tested to ensure its quality and compliance with safety standards.

Download brochure

Olympus GIF-HQ290 – High-Definition Gastrointestinal Endoscope

Advanced Imaging and Technologies

High-Definition (HD) imaging for detailed visualization of the mucosa.
Dual Focus technology for quick switching between standard and close-up observation.
NBI (Narrow Band Imaging) for enhanced visualization of vascular and mucosal structures.
High-resolution optical system to support the detection of subtle lesions.
Compatible with the CV-290 video processor and CLV-290/CLV-290SL light sources.

Practical Features

Integrated water jet for clearing the mucosa during examinations.
Air/water nozzle for convenient lens cleaning during procedures.
Watertight quick-connect connector for simplified handling and maintenance.
Fully immersible connector without requiring an additional watertight cap.

Ergonomics and Performance

9.9 mm outer diameter for easier insertion.
Up to 210° upward angulation for precise navigation through the digestive tract.
2.8 mm working channel compatible with a wide range of endotherapeutic accessories.
Designed to combine high-definition imaging, flexibility, safety, and ease of use.

Applications

The GIF-HQ290 is designed for examination of the upper gastrointestinal tract and is suitable for screening, diagnostic procedures, and interventional endoscopy.

Dual Focus Technology: Adjustable dual focus at the touch of a button.
High-Resolution Imaging: Next-generation optical system for enhanced image clarity.
Narrow Band Imaging (NBI): Improved visualization of vascular and mucosal structures with extended observation distance.
Integrated Frontal Water Jet: Enables cleaning during the examination for a consistently clear view.
Watertight Quick-Connect Connector: Eliminates the need for an additional watertight cap and helps reduce the risk of damage.
Thin and Flexible Insertion Tube: Provides enhanced comfort and maneuverability.
2.8 mm Working Channel: Compatible with a wide range of therapeutic instruments.
Direct Forward Visualization: Enables precise examination of the mucosa.

Plage d’angulation :

Haut : 210°Bas : 90°Droite : 100°Gauche : 100°

Orientation du canal opérateur :

Dans l’axe de l’image endoscopique

Canal opérateur :

Diamètre interne : 2,8 mmDistance minimale de visibilité : 3,0 mm depuis l’extrémité distale

Longueur utile :

1030 mm

Diamètre du tube d’insertion :

9,9 mm

Diamètre de l’extrémité distale :

10,2 mm

Profondeur de champ :

Mode normal : 7–100 mmMode proche : 3–7 mm

Direction de vision :

Axiale (vue frontale)

Champ de vision :

140° (mode normal et proche)

Longueur totale :

1350 mm

Compatibilité :

Système EVIS LUCERA ELITE (CV-290, CLV-290/CLV-290SL)

Biopsy Valve: MB-358
Suction Valve: MH-443
Air/Water Valve: MH-438
Auxiliary Water Tube: MAJ-855
Suction Cleaning Adapter: MH-856
Channel Plug: MH-944
Injection Tube: MH-946
Air/Water Channel Cleaning Adapter: MH-948
Single-Use Combination Cleaning Brush: BW-412T
Reusable Cleaning Brushes: MH-507 and BW-20T
ETO Cap: MB-156
Auxiliary Water Inlet Cap: MAJ-215
Distal Attachment for ESD: D-201-11804
Distal Attachment for Zoom Endoscopy: D-201-11802
Black Distal Hood: MAJ-1989
EMRC Distal Attachment: D-206-05
